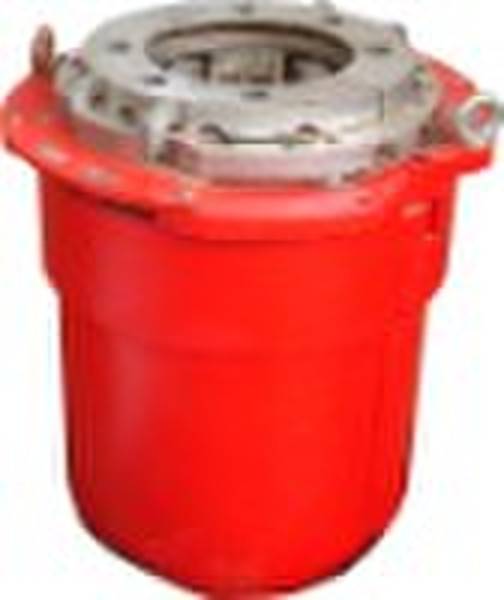

Air Slips

I.Characteristics 1.The operation of in and out drill rod doesnt need to change slips, which greatlyreduces workers labor intensity. 2.The body of slips has large contact area with drill rod, high load capacity andmeets the requirements of7000m drill rod operation. 3.The body of slips has lower operational height and doesnt affect wellheadoperation; 4.The slips matchsof ZP175, ZP205, ZP275 and ZP375. 5.The slips could hold drill pipes of 3-1/2, 4-1/2,5and 5-1/2. II.TechnicalParameter ParameterAir Supply Working Pressure (Mpa)Effective Chucking Length of Slips(mm)Operational Height of Slips Body(mm)Load rating (KN)Capacity of Hanging 5Drill Pipe(m)Type of Rotary TableOverall Dimension(L × W × H)RSD/QW5-3750.6-0.84202802500≤ 6000ZP375630×630×560
